Your current location: home page - Products - GO KART ITEMS

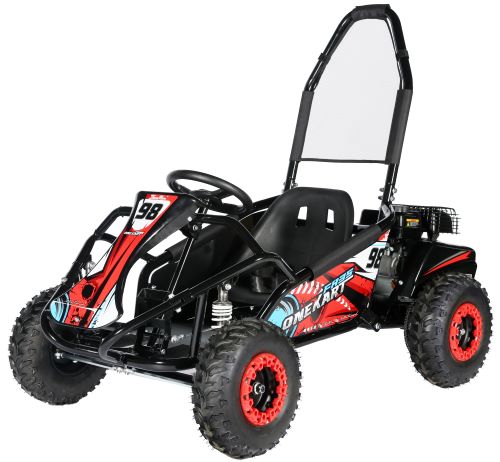

ITEM NO:  MC-403-98CC
Specifications:
Engine Type: DK156F (98CC)
 Cooling mode  Fan cooled
 Number of stroke  4-stroke
 Number of cylinders 1-cylinder
 Bore×Stroke: φ56×40
 Compression Ratio:  8.5:1
 Ignition: CDI
Starting:  Pull start
 Fuel Type Gasoline
 Transmission: /Automatic Clutch
 Drive Train:  Chain drive
 Gear Ratio 1:8.3
 Max. Power: 1.85kw/3600r/min
 Max. Torque: 4.8N.m/2500r/min
 Engine Oil Capacity: 0.4L
 Suspension/Front:  double shock absorber
 Suspension/Rear:  Single shock absorber
 Brakes/Rear:  Disc Brake
Tires/Front: 4.10-6
Tires/Rear: 5.0-6
 Overall Size (L×W×H)   1460×840×1080
 Seat Height: 200
Wheelbase: 924
 Ground Clearance: 130
 Fuel Capacity: 1.6L
 Dry Weight: 78kg
 Gross Weight: 84KG
 Max. Load: 68kg
 Package Size: 1380×830×520mm
 Max. Speed: ≥30km/h
 Rims Steel
 Muffler Steel
 Loading Quantity: 110pcs/40´HQ
 Certificates CE, UKCA, EPA, Carb
PREV: MC-452-400CC
NEXT: No Data
