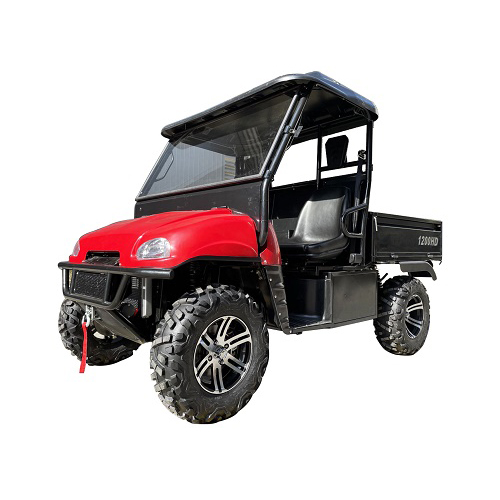

ITEM NO:  MC-172-1200CC
Specifications:


Engine: ChangChai 3M78 L3 Diesel Engine. 3 Cylinder 4 Stroke,water cooled
Cylinder bore: 78mmX85mm
Displacement: 1218cc
Type of combustion chamber: Direct Injection
Compression ratio 19 : 1
Lubrication: Pressure splash
Lubricating oil 15W-40
Lubricating oil Capacity: 2.3L
Fuel: 0# -10# -20# -35# -50# Diesel
Fuel System: High pressure common rail
Max Power: 10-19kw/1500-3200RPM
Max Torque: 84Nm/1800-3200rpm
Start: Electric with a set of keys
Fuel Capacity: 23L
Constant-Speed Fuel Economy: 5L/100KM
Transmission: CVT Belt Fully Automatic,2WD/4WD with Locking Rear Differential
Gear Shifting: R.N.D.L(Reverse,Neutral,Drive,Low gear)
Suspension: Independent Front suspension with adjustable shocks. Heavy Duty rear swing arm with adjustable shocks
Brakes: Front and Rear Disc Brake
Seat Height: 790mm
Ground Clearance: 260mm
Top Speed: 40MPH(65KM/H)
Tires: Front(25X8-12),Rear(25X10-12)
Wheel rim: Aluminum Alloy Wheel Rim
Climbng Capacity: 20 Degree
Cargo Box Capacity: 500Kg
Wheelbase: 2095mm
Tread: Front: 1230mm; Rear: 1330mm
Net Weight: 800kg
Gross Weight: 915Kg(1797LBS)
Product size: 3160X1550X1955mm
Packing Size: 2840X1600X1100mm
Conveyance 4pcs/20FCL; 8pcs/40HQ.
Color: Dark Green,Red
